Product Details
Place of Origin: China
Brand Name: LENGE
Certification: CE/SGS/ISO
Model Number: LWR 112-300200
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Wooden cases
Delivery Time: 15-20 Days
Payment Terms: T/T, L/C
Supply Ability: 100 Sets per Month
Material: |
SUS 304 |
Wind Speed: |
0.45m / S ± 20 % |
Warranty: |
1 Year |
Controller: |
HMI |
Filtration: |
G4 + F8 + H14 |
Cleanliness Class: |
Same As The Background Area |
Material: |
SUS 304 |
Wind Speed: |
0.45m / S ± 20 % |
Warranty: |
1 Year |
Controller: |
HMI |
Filtration: |
G4 + F8 + H14 |
Cleanliness Class: |
Same As The Background Area |

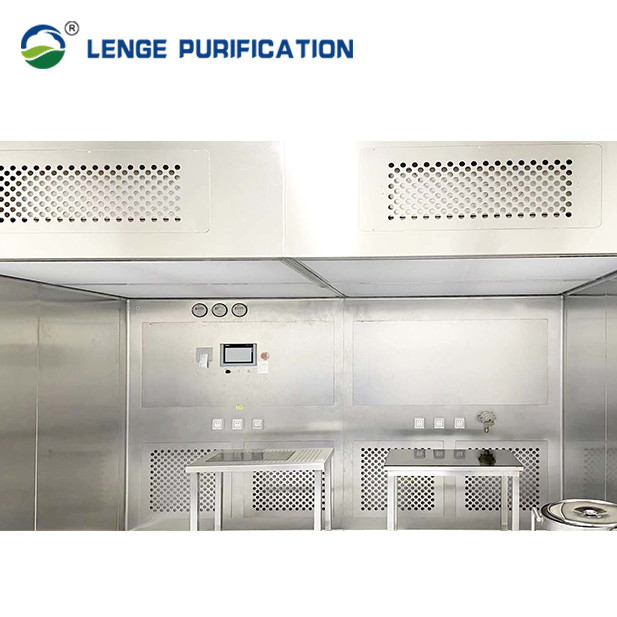

3000 * 1800 * 2000 mm Weighing Booth For Weighing Preparation
Cross contamination control through negative pressure environment option.
GMP modular design with minimized joints and seams.
All components meet or exceed applicable safety requirements.
Technical Specifications & Parameters:
|
Material |
SUS 304/316L stainless steel |
||||
|
Filter Module |
Pre-filter, comport filter, HEPA filter |
||||
|
Core Part |
Air Blower |
||||
|
Model No. |
LWR 13-120060 |
LWR 34-150120 |
LWR 75-200200 |
LWR 112-300200 |
LWR 186-400250 |
|
Outer Size |
1300×1200×2570 |
1600×1800×2570 |
2100×2800×2570 |
3100×2800×2570 |
4100×3300×2570 |
|
Inner Size |
1200×600×2000 |
1500×1200×2000 |
2000×2000×2000 |
3000×2000×2000 |
4000×2500×2000 |
|
Rated Air Velocity |
0.45±20% |
||||
|
Cleanliness Class |
Same as the background area |
||||
|
Power Supply |
380V, 50Hz |
||||
|
Power (kW) |
0.8 |
2 |
4 |
4 |
7.5 |
Note: The specifications listed in above table are only for customer’s reference. It is mostly designed and manufactured according to customer’s URS.
Containment System:
Main Stream - The opening provides an airflow velocity of 0.45 m/s.
HEPA fan module provides laminar flow of particlefree air (measured at 0.3µm particles) to meet clean room requirements—99.995% efficient ULPA filters also available.
Filter Module
—— Pre filter -- Panel filter G4
—— Comfort filter -- Bag filter F8
—— HEPA filter -- Gel sealed mini-pleated HEPA filter H14
380 V power supply
Product Outline Design:
